Webasto BlueCool VX-Series
Webasto BlueCool VX-Series - Image 2
Webasto BlueCool VX-Series - Image 3

Webasto BlueCool VX-Series

The BlueCool VX-Series from Webasto is the innovative chiller system with variable speed control. The system consists of six modular chiller units that can be flexibly combined. They are available in sizes of 36, 48, 60, 72 and 120 kBTU/h and can easily be combined to create high system cooling capacity. This makes the system ideal for medium-sized boats through to superyachts.

The BlueCool MyTouch display provides a user-friendly interface, multilanguage support, and water flow monitoring for sea and chilled water circuits. In combination with the VX-system bus, the improved MyTouch display allows the individual units to be controlled centrally. Choose from pump control boxes and other accessories for seamless integration.

Categories: , , Tags: , , Brand:

Description

Product specifications

  • Modular units with 36, 48, 60, 72 and 120 kBTU/h
  • Multiple units can be combined into one system thanks to the VX-System Bus
  • Individual system cooling capacities can be created
  • Efficient Reverse Cycle Heating integrated
  • Nominal voltage: 230 V and 208 V 3-phase for VX 72M 3~
  • Frequency: 50/60 Hz and 60 Hz for VX 72M 3~
  • Dimensions of the unit L x D x H (mm) / Weight of the main unit (kg)
    • Type VX 36M: 533 x 352 x 378 / 49
    • Type VX 48M: 534 x 398 x 429 / 63
    • Type VX 60M: 593 x 399 x 479 / 76
    • Type VX 72M: 683 x 398 x 546 / 92
    • Type VX 72M 3~: 698 x 401 x 546 / 94
    • Type VX 120M: 766 x 401 x 638 / 130

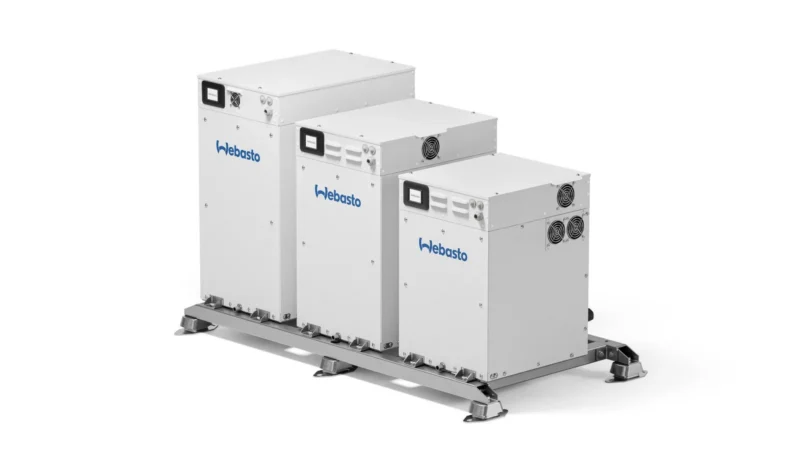

  • Mounting Base: The VX-Series offers versatile mounting bases for various combinations. You can combine two or three units of different cooling capacities ranging from 36 to 120 kBTU/h, ensuring optimal fixation and stability.
  • Pump Control Box: Installs pump relays remotely, connects to chiller units via VX-System Bus.
  • Remote Connection Box: Monitors and controls VX-Series system remotely, includes MyTouch display, pump relays, USB interface.
  • Master Control Box: Combines pump and remote control, pump redundancy, central power supply, emergency stop, circuit breaker

Model overview

  • VX 36M – 230 V – R32 refrigerant
  • VX 48M – 230 V – R32 refrigerant
  • VX 60M – 230 V – R32 refrigerant
  • VX 72M – 230 V – R32 refrigerant
  • VX 72M – 208 V – R32 refrigerant
  • VX 120M -230 V – R410a refrigerant

Webasto Datasheet Available HERE
