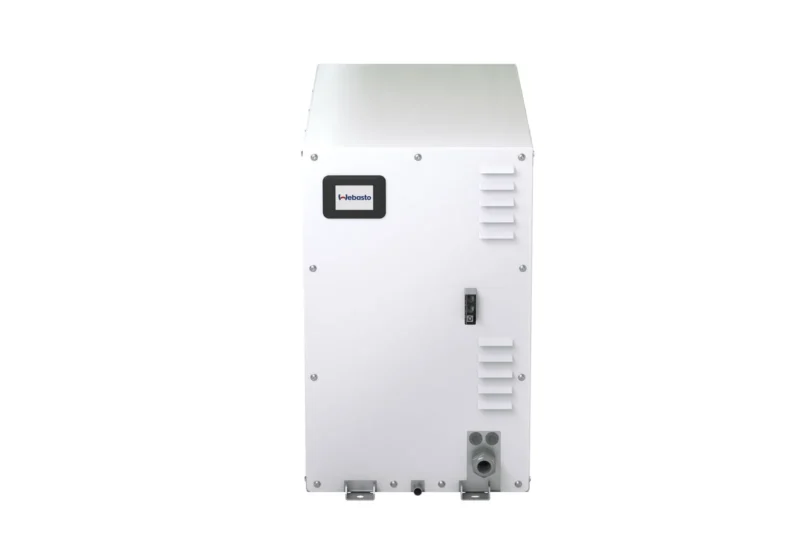

Webasto Bluecool V-Pro Series
Webasto Bluecool V-Pro Series - Image 2
Webasto Bluecool V-Pro Series - Image 3
Webasto Bluecool V-Pro Series - Image 4

Webasto Bluecool V-Pro Series

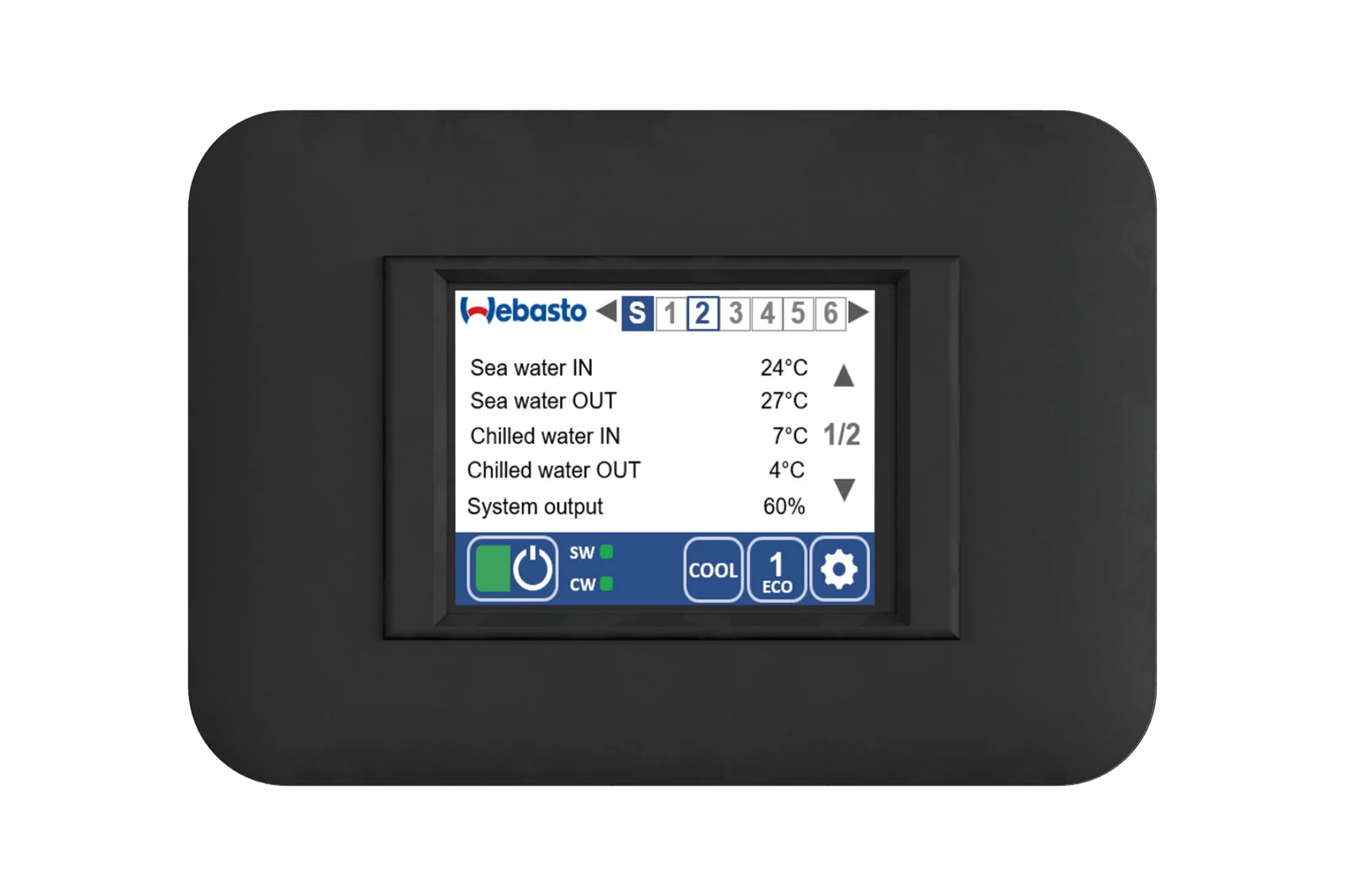

The BlueCool V-PRO series from Webasto is the innovative chiller system with variable speed control. The system consists of four modular chiller units that can be flexibly combined with each other. They are available in sizes of 60, 90, 130 and 180 kBTU/h and achieve a combined cooling capacity of up to 1 million BTU/h (293kW). This makes the system ideal for medium-sized boats through to superyachts and commercial vessels. The BlueCool V-PRO series has numerous intelligent functions and optional accessories. The units and the entire system are controlled via a multilingual color display.

Categories: , , Tags: , , Brand:

Description

Product specifications

  • Modular units with 60, 90, 130 and 180 kBTU/h
  • Up to 6 units can be combined into one system
  • Cooling capacity: 15,000 – 1,000,000 BTU/h
  • Heating function possible
  • Nominal voltage: 360 – 480 V
  • Frequency: 50/60 Hz
  • Dimensions of the unit L x D x H (mm) / Dimensions of the unit incl. silent blocks L x D x H (mm) / Weight of the main unit (kg)
    • Type V-PRO 60M: 630 x 410 x 650 / 653 x 470 x 700 / 89KG
    • Type V-PRO 90M: 630 x 410 x 650 / 653 x 470 x 700 / 97KG
    • Type V-PRO 130M: 830 x 410 x 650 / 853 x 470 x 700 / 120KG
    • Type V-PRO 180M: 830 x 410 x 650 / 853 x 470 x 700 / 136KG

Model overview

  • V-PRO 60M
  • V-PRO 90M
  • V-PRO 130M
  • V-PRO 180M

Webasto Datasheet Available HERE
