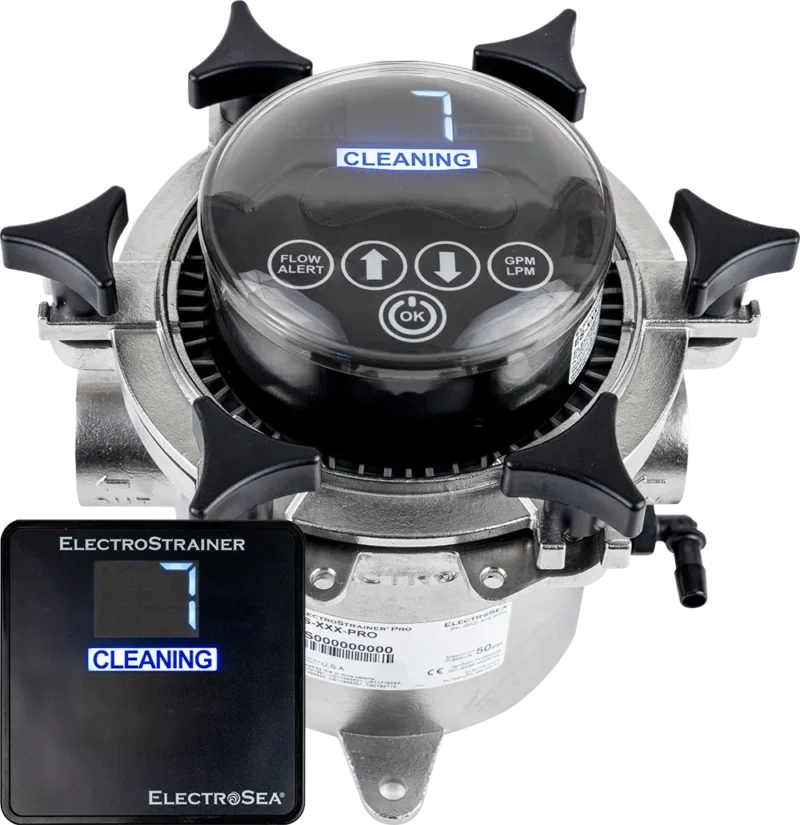

ElectroStrainer Pro ES-100-PRO

ElectroStrainer ES-100-Pro is a revolutionary, smart all-in-one marine biofouling prevention and sea strainer system. Suited for vessels with 1″ NPT (DN25) inlet/outlet accommodation for the sea strainer, the ES-100-Pro replaces your existing sea strainer and combines four components: an innovative biofouling prevention device, an integrated hydrodynamic sea strainer, an advanced, smart flow-monitoring system, and a remote display.

Categories: , Tags: , Brand:

Description

Dimensions (L x W x H) 9.02 x 7.72 x 7.37 inches
229.11 x 196.09 x 187.2 mm
Weight 14 lb 3 oz
6.44 kg
Power Source 12 or 24 VDC
Power Consumption Max Power: 65 watts
Typical Power: 35 watts
Cables Included Power: 30 ft (9 m)
Remote Display Communication: 30 ft (9 m)
Optional Cables (ordered separately) Extended Remote Display Communication: 100 ft (30 m)
ClearVis Flow Sensor Extension: 6 ft (1.8 m)
Inlet/outlet 1 inch NPT (DN32)
Flow Rate Optimal Flow: 3-12 gpm (11-45 lpm)
Min/Max Flow: 3-20 gpm (11-76 lpm)
Maximum Operating Pressure 50 psi
Replacement Cell Part Number 300074-039
